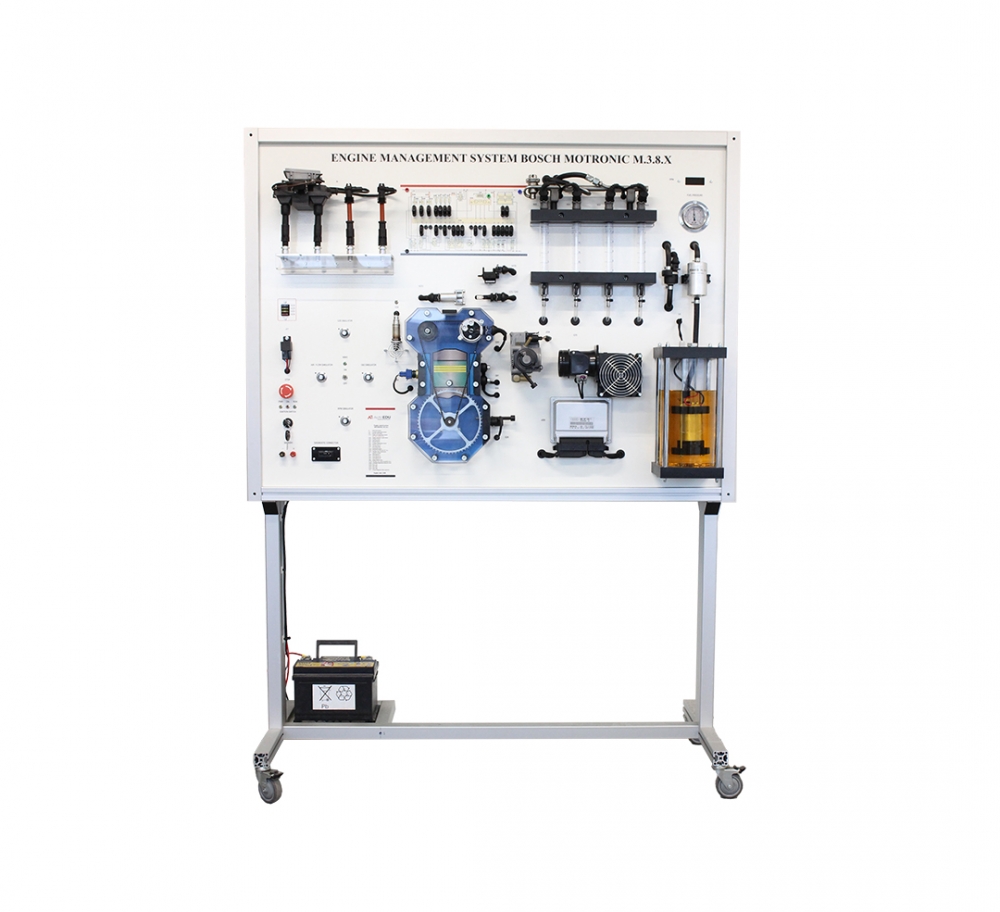

Engine control system MOTRONIC M 3.8.X (MPI) Educational Trainer MSMPI01 AutoEDU
Fully functional multipoint petrol injection (MPI) system integrates Audi/VW OEM components to simulate the operation modes of the fuel injection and ignition system. Showing structure of the engine control system, its components and operation modes, conduct various measurements and diagnostic procedures.
Features
- Demonstrates multipoint petrol injection (MPI) system operations, including fuel supply, injection quantity, and spray pattern quality.
- Transparent fuel tank and visible spark plug operation allow students to observe internal processes.
- Features manual adjustment of engine crankshaft speed and air/fuel mixture via oxygen sensor signal simulator.
- Includes a detailed electric wiring diagram with built-in banana plug jumpers for accurate measurements and fault simulations.
- Simulates faults by disconnecting banana plug jumpers, with the ability to simulate over 20 different faults.
- Allows for comprehensive ECU diagnostics, including reading/erasing fault codes, live data display, and actuator activation.
Value for Students
- Provides easy, safe, and comfortable training that builds confidence, using OEM components to offer a realistic car repair experience.
- Gain practical experience with multipoint petrol injection systems and understand the interaction between fuel supply, and ignition systems.
- Study and analyze the electrical circuits of electrical components for multipoint petrol injection system engines, learn and understand about the wiring diagrams and presented components on it.
- Understand and analyze fuel supply systems, injected fuel quantity, spray pattern quality. Fuel pump is visible to see its operation.
- Understand the operation and troubleshooting of modern ignition systems.
- Demonstrate and understand the synchronization between crankshaft and camshaft in engine operation.
- Use banana plug connectors to monitor and measure electrical parameters with a real-time data oscilloscope, multimeter, scan tool.
- Adjust key engine parameters like crankshaft rotation frequency, sensor values, air flow rate and temperatures using potentiometers and simulators.
- Develops proficiency in using OBD 16-pin diagnostic connectors for ECU identification, fault code management, and live data monitoring, activating actuators (depends on model), throttle body adaptation, control unit encoding/configuration.
- Enables measurement of electrical signal parameters, high voltage circuits of the ignition system, fuel injection characteristics using an oscilloscope and multimeter.
- Develop skills in simulating and diagnosing more that 20 system circuit faults to learn troubleshooting abilities, by disconnecting banana plug connectors.
- Teaches the function and interaction of critical components like the mass airflow meter, air temperature sensor, spark, pump, throttle valve
Value for Instructors
- Provides easy, safe, and comfortable training that builds confidence, using OEM components to offer a realistic car repair experience.
- Compact and vertically oriented for enhanced mobility and efficient use of classroom space. Durable and light construction from solid aluminum frame to make it long lasting and safe to use. Closed panels and internal wiring is safe to use and ensures accidental damage to sensitive training stand parts.
- Uses OEM automotive parts for an authentic and practical learning experience. Students gets real experience with all parts and functions exact as in real cars.
- Easier real-time monitoring and fault simulation to improve student understanding and troubleshooting skills.
- The Audi/VW OEM-based system allows students to be trained in diagnostics using almost any multibrand, specialized or OEM scan tools, ensuring a safe and high-quality learning environment.
- Board on castors version, which is mobile and space saving in the classroom, allows concurrent use by multiple students, promoting collaborative learning and practical training opportunities.
- The training stand is designed for simplicity, requiring only small adjustments to reset to default parameters, making it easy to prepare and start each lesson quickly and efficiently.
Specifications
- Dimensions: 1820 x 1360 x 500 mm (71.65 in x 53.54 in x 19.69 in)
- Weight: approx. 70 kg (154 lb)
- Power Supply: 12V from battery or power supply unit (battery and power supply unit not included)
- Product number: MSMPI01
- Optional Accessories: Examination console for 10 hidden fault simulations, 12V battery, 220/12V power supply unit, OBD diagnostic scan tool
Parameters
| Brochure | MSMPI01_compressed.pdf |
