AIR HYDRAULIC PRESS FOR TRUCK WORKSHOPS AND INDUSTRY
AIR HYDRAULIC PRESS FOR TRUCK WORKSHOPS AND INDUSTRY

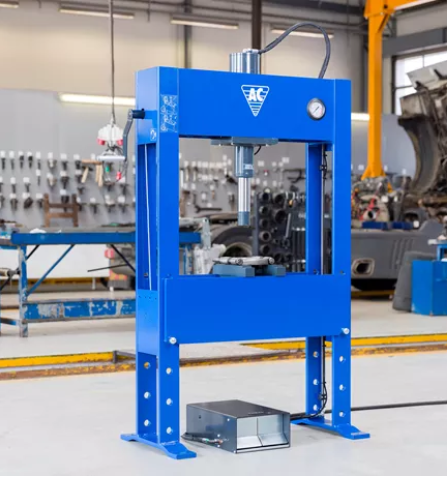

The air hydraulic press work is fully operated via the foot control, and both hands remain free to handle the item
Traversing ram
With 300 mm stroke for dealing with demanding jobs
Wide, welded frame and press table ensuring high flexibility

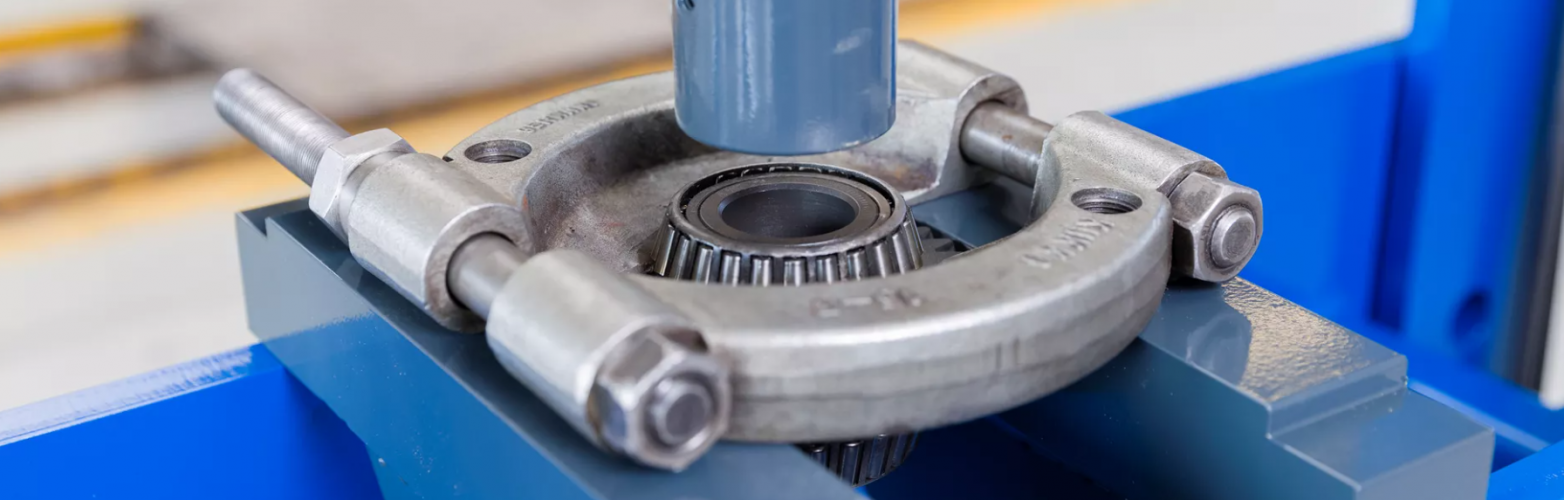

Removable ram end cap for mounting of various piston heads
-
SAFETY
Built-in safety overload valve
-
EASY ADJUSTABLE
Winch operated press table
-
PRECISE PRESSURE
Built-in pressure gauge at convenient eye level
-

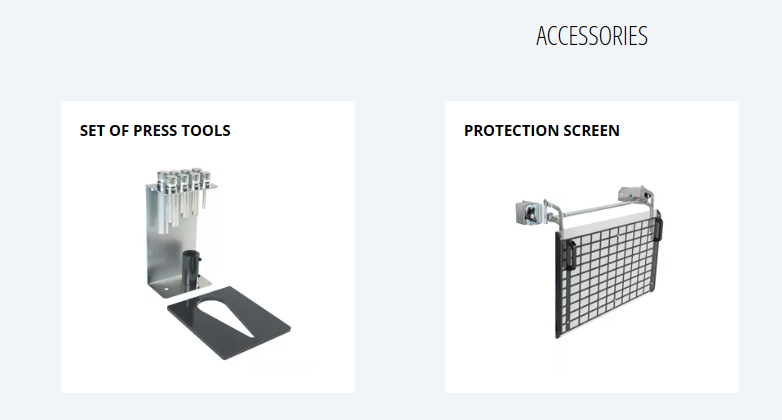

STANDARD ACCESORIES
Supplied with 2 vee blocks

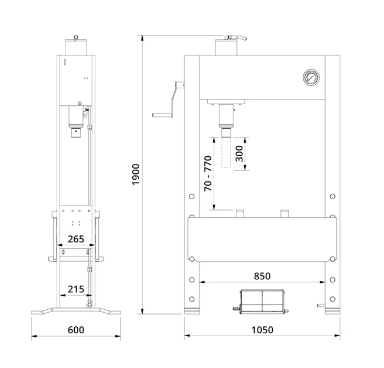

Parameters
Height | 1900 mm |
Brochure | P40LH |
Capacity | 40000 kg |
cylinder movement | 300 mm |
Inner depth | 215 mm |
Inner leg width | 850 mm |
Overall width | 1050 mm |
Press hydraulic cylinder | 70-770 mm |
Weight | 425 kg |
