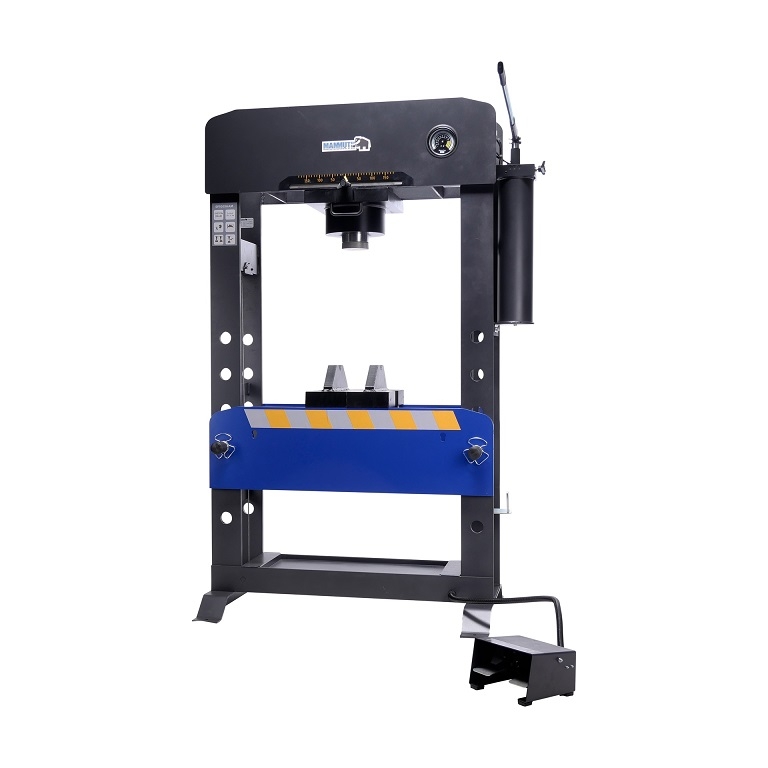

Workshop press air hydraulic with foot pedal 100 tons
This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press offers power and precision. This makes it a reliable choice for any workshop.
Two-stage pump: Fast at first, then precise pressing.
Hand winch work table: Easily adjustable to 6 heights using the winch.
Side-adjustable cylinder with scale: For precise positioning.
Interchangeable pressing adapter: Easy to remove for using other attachments.
Pneumatic foot pedal: Effortless operation, keeping your hands free.
Parameters
Cylinder diameter | 106mm |
working width | 850mm |
Oil capacity | 2.5L |
Air pressure | 8-12 bar |
packaging dimensions | 195x130x40cm |
Sizes | 125x75x194cm |
Max. height | 700mm |
Min. height | 185mm |
Strenght | 100T |
Weight | 650kg |
Stroke | 300mm |
