Gift ideasHollow cylinder 30 ton stroke 50mm

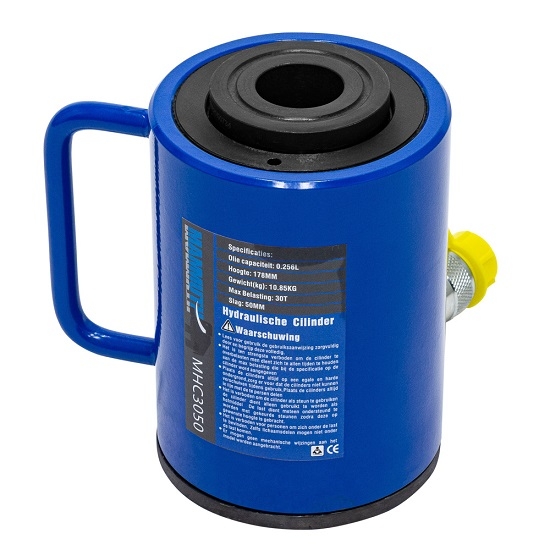

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Parameters
| Outer cylinder diameter | 118 mm |
| Cylinder power | 30t |
| Bore diameter | 33mm |
| Oil capacity | 0.26 L |
| Max. Working Pressure | 700 bar |
| Piston diameter | 70mm |
| Stroke | 50mm |
