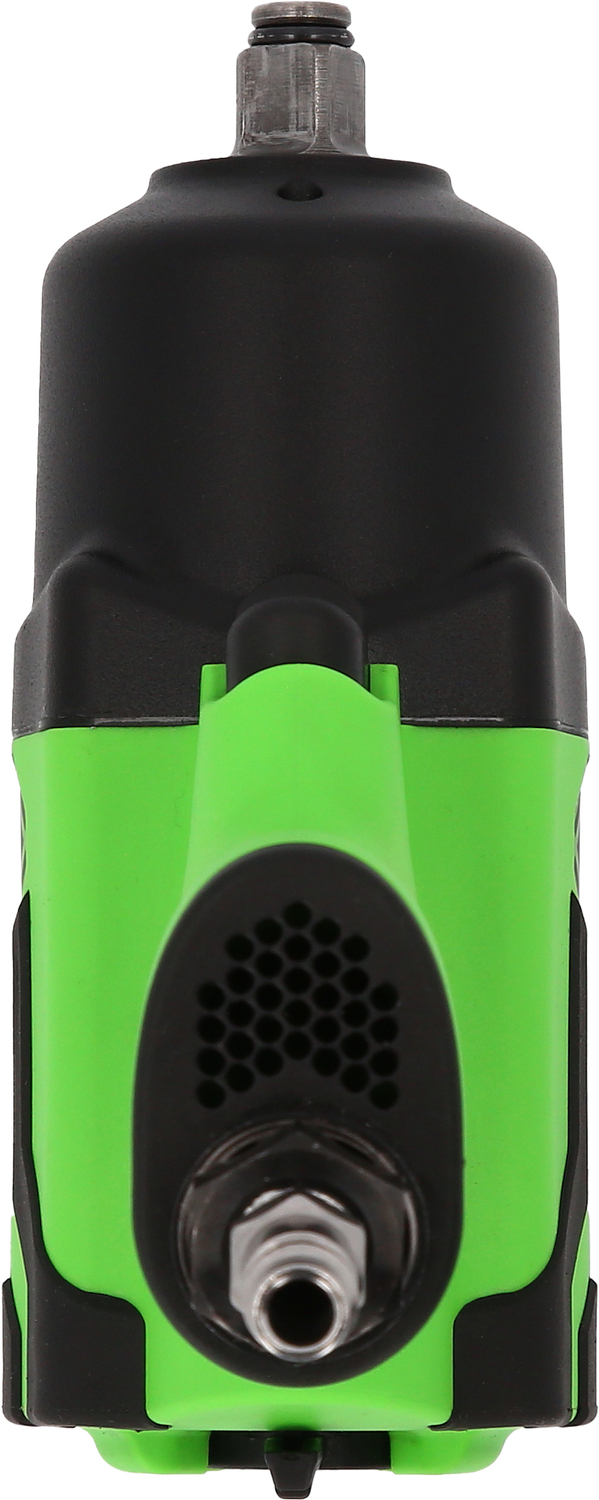

1/2" COMPETITION High Performance Pneumatic impact wrench 1.600 Nm

• with non slip soft grip handle
• side protectors
• air exhaust through the handle
• with practical clockwise and anticlockwise switch
• easy operation
• 3 stage torque adjustment
• high performance double hammer mechanism
• compact construction
• long service life
• cold insulated handle
• includes 1/4" coupling connector
• ultra light aluminium housing

• Air consumption in l/min: 169 l/min
• Connection thread: 1/4"PT
• Drive in imperial: 1/2 "
• Handle: non-slip soft grip handle
• Manufacturer no: 5120020
• Material1: aluminium
• max. Clockwise torque2: 2 = 660 Nm Nm
• max. Clockwise-torque3: 3 = 870 Nm Nm
• max. Loosening torque: 1600 Nm
• max. Screw size: M16
• max. Tightening torque: 1 = 490 Nm Nm
• min. Tube diameter: 3/8" - 10 mm mm
• No Load current rpm: 8600 r.p.m.
• Noise performance level (dbA): 100.9 dB(A)
• Noise pressure level (dbA): 89.9 dB(A)
• Operating Mode: pneumatic
• Operating pressure in bar: max. 6,3 bar (90 psi)
• Reccomended torque: 550 Nm
• Square drive: 1/2 "
• Total length L in mm.1: 186.9 mm
• Vibration acceleration: < 17,4 m/s²
• Weight [g]: 2100 g
• Width B: 174.3 mm
