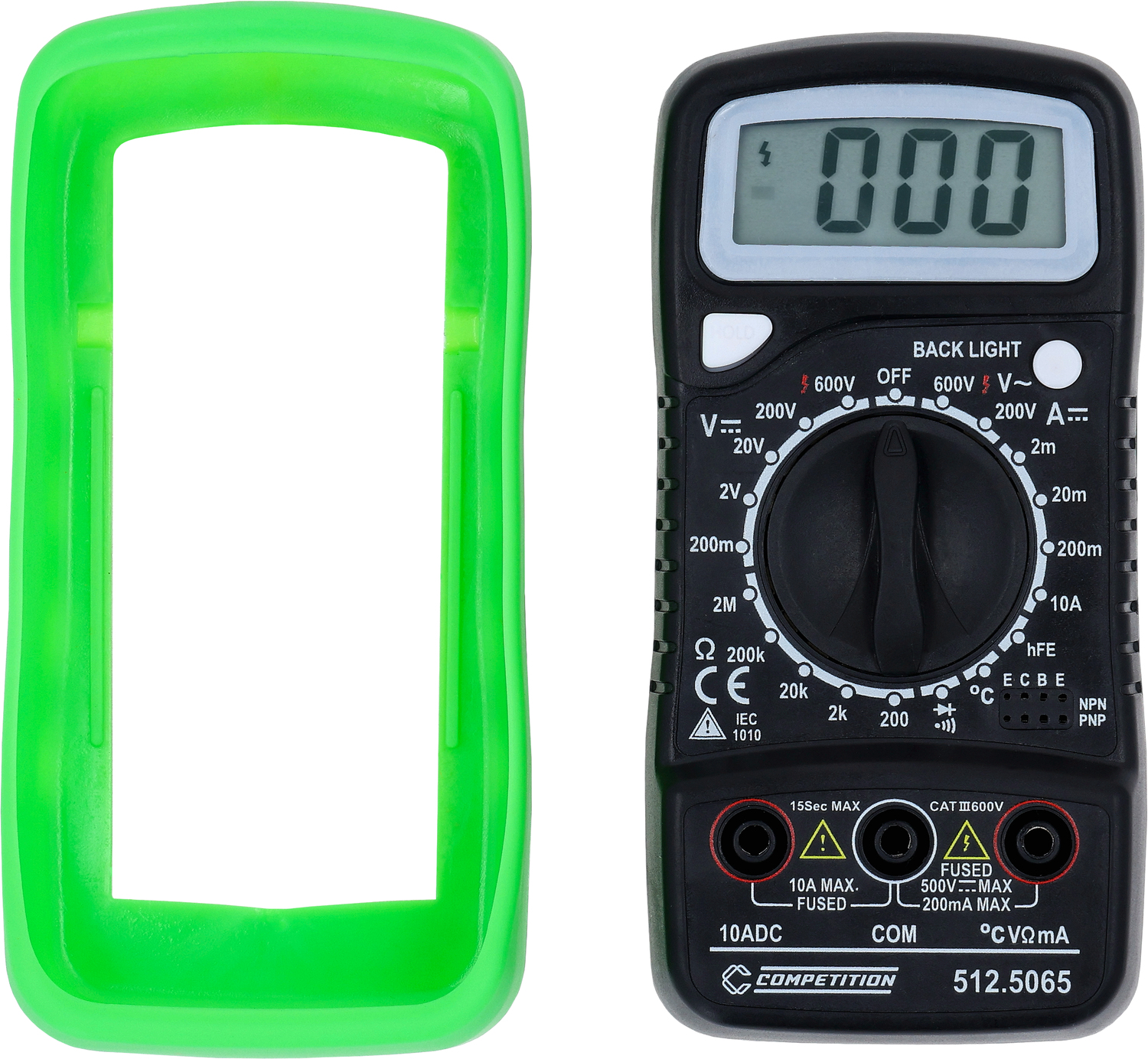

Gift ideasCOMPETITION digital multimeter
- specially developed professional multimeter for automotive and commercial electrics and electronics
- dual LCD display with digital display and bar diagram display (32 segment bar graph)
- with automatic overflow and polarity indication
- with safety mechanism for V, µA/mA/A, therefore incorrect connection is impossible
- central 19-digit rotary switch
- large LCD display with 3.1/2-digit, high-contrast display with background lighting
- charge state shown in display
- with integrated glass fuse 250mA / 600V, 10A / 600V – 32 x 6 mm to protect the circuits
- includes measuring line set with probes
- with on/off switch and automatic temperature shutdown
- with fold out adjustable foot in protective rubber holster
- sturdy plastic housing
- AC voltage: 200 V - 600 V
- Application in general: automobile
- Battery composition: Zinc Carbon
- Battery included: Yes
- Battery rechargeable: No
- Battery type: 9V
- co-current flow: 20 μA - 10 A
- DC voltage: 200 mV - 600 V
- Depth in mm: 31.0 mm
- Function attribute 1: hold functions
- Fuse protection S1 (fine flow): 250mA/600V; 10A/600V
- Lithium battery included: No
- Manufacturer no: 5125065
- Number of batteries required: 1
- Power requirement: 9V block battery
- Readout: digital
- Resistance measurement: 200 Ohm - 2 MOhm
- Storage temperature: -10° to +50° C (14° to 122° F)
- Total length mm.1: 138 mm
- Voltage battery: 9 V
- Weight [g]: 300 g
- Weight battery [kg]: 0.047 kg
- Weight class battery: class 03 (31 - 50g)
- Width in mm: 69 mm
- Working temperature: 0° to +40° C (32° to 104° F)
