Plasma cutter CUT 100 P IGBT 100A, pilot ignition, up to 44 mm cutting power

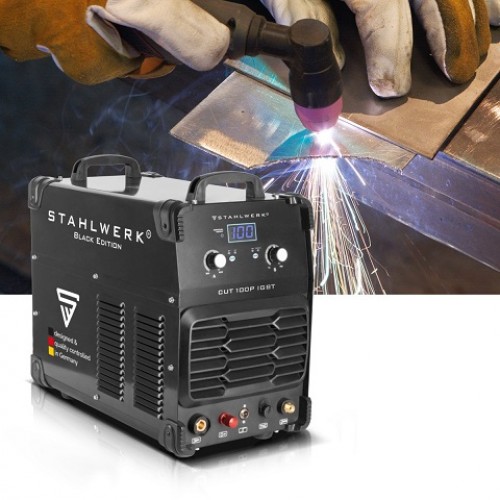

• Plasma / CUT - A plasma jet is generated by means of electricity, which melts the material, which is then removed with compressed air. This allows effortless precise cutting of all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
• Cutting thickness - cut-offs are possible up to 44 mm depending on the material. Mild steel ST37 up to 44 mm, V2A or V4A up to 32 mm, aluminum up to 27 mm.
• Pilot ignition - High frequency (HF) pilot ignition for first-class ignition behavior. No contact with the workpiece necessary! The pilot flame establishes the arc. This torch can be operated with a spacer, which is included in the delivery.
• Cutting current - Stepless adjustment from 20 to 100 A.
• Air Follow - After cutting is complete, air flows to cool the torch and reduce nozzle and electrode wear.
• 2T/4T - determines mode control and provides advanced control over current flow. In 2T mode, high frequency (HF) ignition remains active until the button on the torch is released. In 4T mode, pressing and releasing the button once ignites the arc. After pressing and releasing again, the ignition is terminated.

• IGBT Technology - Latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!

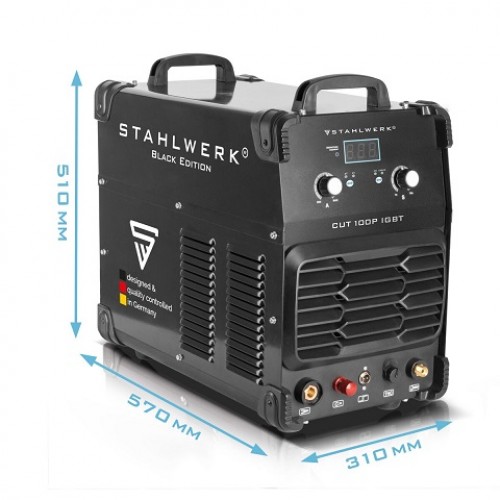

• Lightweight & Compact Design - Weighing only 27.5 kg and measuring 570 x 310 x 510 mm, the unit is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
• Highest Efficiency & Power - Three-phase AC power (400 V) supplies the unit and allows output power of true 100 amps.
• Smart Cooling & Overheat Protection - State-of-the-art technology, built-in overheat protection, and high-performance cooling allow maximum power to be retrieved.
• Torch Height Control (THC) - The CUT 100 P plasma cutter is equipped with a 2-pin connector (THC) for torch height control. This connector is designed for direct reading of the cutting voltage from a torch height control. In doing so, the arc voltage is measured during the cutting process and transmitted to the CNC control. This allows the CNC system to maintain the correct torch height regardless of variations in the material or flatness of the cutting surface. In this way, a constant distance to the workpiece is guaranteed at all times.

Scope of delivery:
Professional plasma hose package P-80 5 m
Plasma accessory set 3 pieces (already pre-assembled on the plasma torch):
- 1 x plasma nozzle
- 1 x plasma electrode
- 1 x ceramic cap
Ground cable 5 m
Guide carriage with spacer

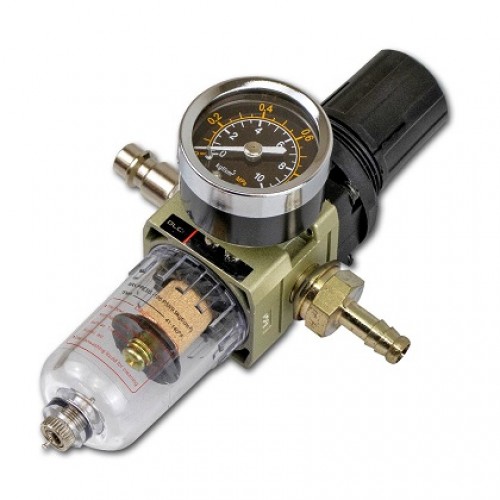

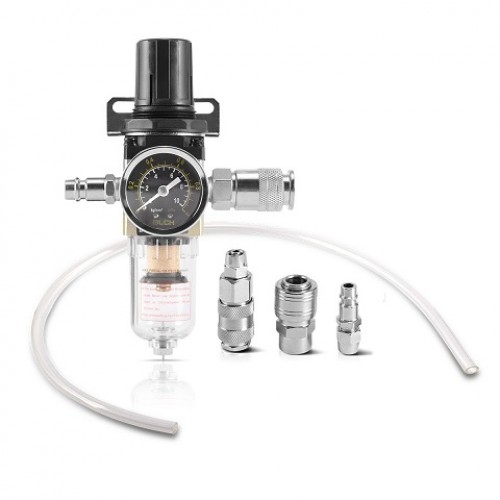

Water separator with pressure gauge and snap-on quick couplings
Air connection hose with Snap-on quick couplings 5m
Connecting hose with Snap-on quick couplings from the unit to the water separator, incl. 6-piece connection set
Protective cover
Teflon tape
