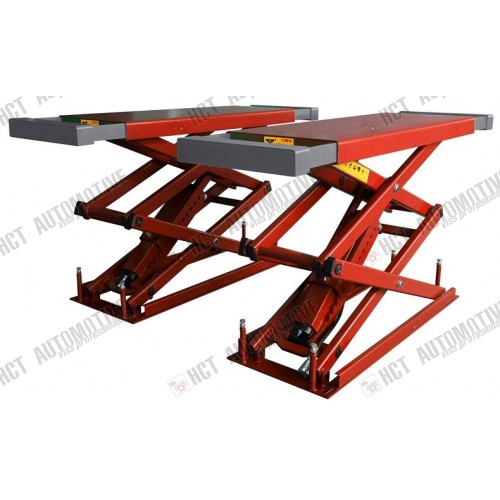

Gift ideasFull rise inground scissor lift 3500kg
1. In ground installation, 3500KGS lifting capacity.
2. All the seal kits of cylinder are import from Italy, the cylinder import
from Taiwan.
3. Extendable platform on both sides, service for more cars.
4. Inside of cylinder assy has the special treatment and make sure
that is doesn't t leak oil.
5. 24V control system and limited switch.
6. Pneumatic safety switch

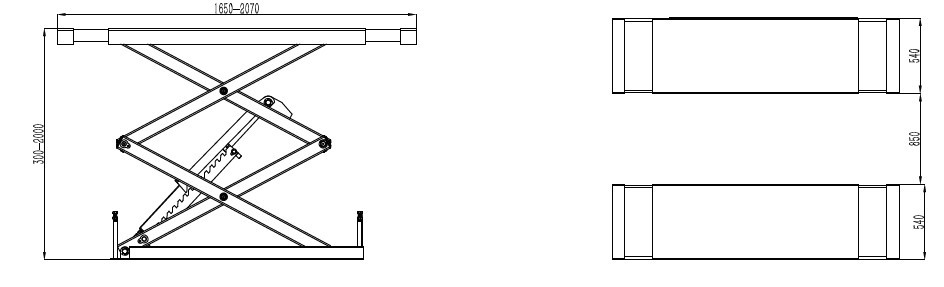

Parameters
| Width between platforms | 850 mm |
| Capacity | 3500 kg |
| Max. height | 2000 mm |
| Min. height | 0 mm |
| Platform length | 1650 - 2070 mm |
| Platform width | 540 mm |
