Gift ideasAir hydraulic single ram pit jack 15t
Rapid and precise air hydraulic unit with high speed ram travel
slow down valve
self return switch for self working
frame height is adjusted and set to the customers individual specifications
can be made to fit all lifts due to it adjustable frame
comprehensive option range: cross beam, gearbox saddle, support bridge, etc.
fitted with leaf spring support bearings for easy glide transversing ram.

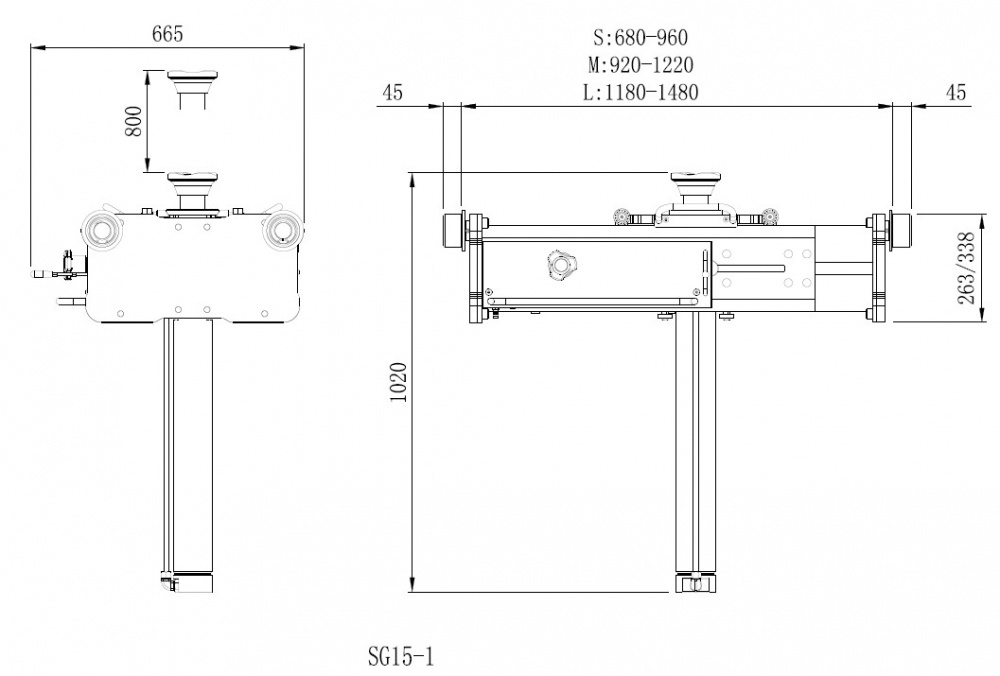

Parameters
| Capacity | 15000 kg |
| Air pressure | 7 - 12 bar |
| Max. height | 1820 mm |
| Min. height | 1020 mm |
| Weight | 280 kg |
| Stroke | 800 mm |
