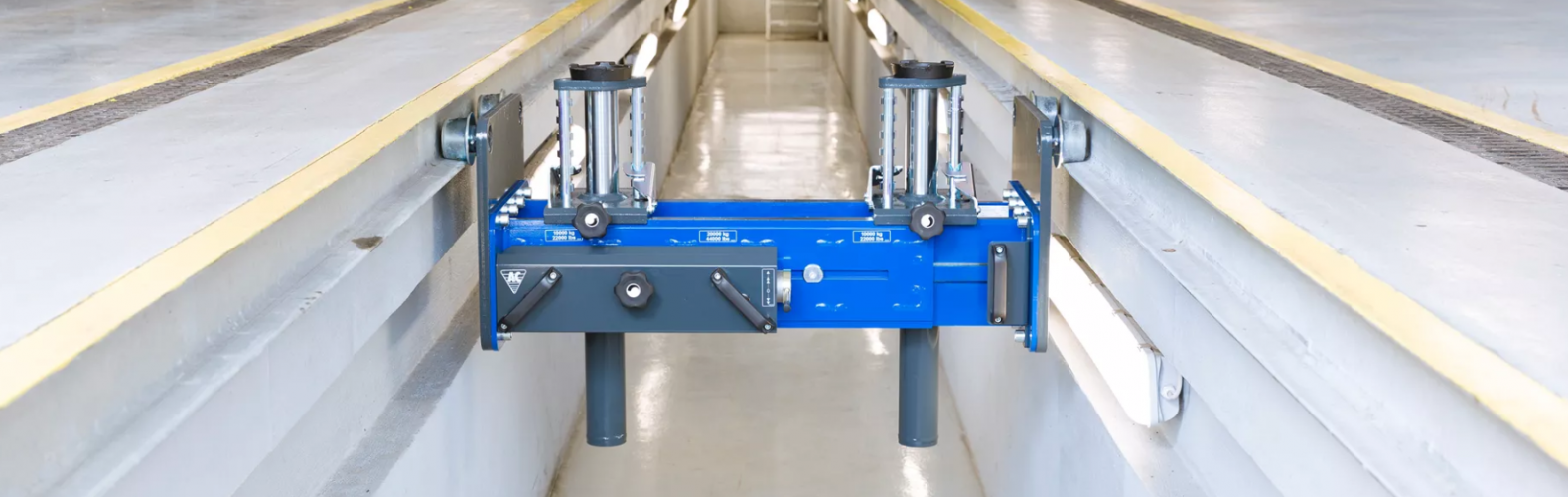

AIR HYDRAULIC TWIN RAM PIT JACK, WITH AN AUTOMATIC MECHANICAL SAFETY LOCK
AIR HYDRAULIC TWIN RAM PIT JACK, WITH AN AUTOMATIC MECHANICAL SAFETY LOCK

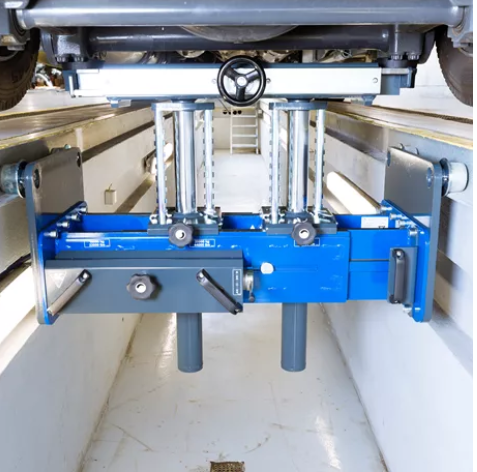

2 individually controlled rams offer safe and balanced lifting
Rapid and precise air hydraulic unit with high speed ram travel
Simple modern design with control panel at ergonomical working height
Transversely sliding rams
Can be made to fit all pits due to its adjustable frame
-
ADJUSTABLE FRAME HEIGHT
Frame height is adjusted and set to the customers individual specifications
-
OPTION RANGE

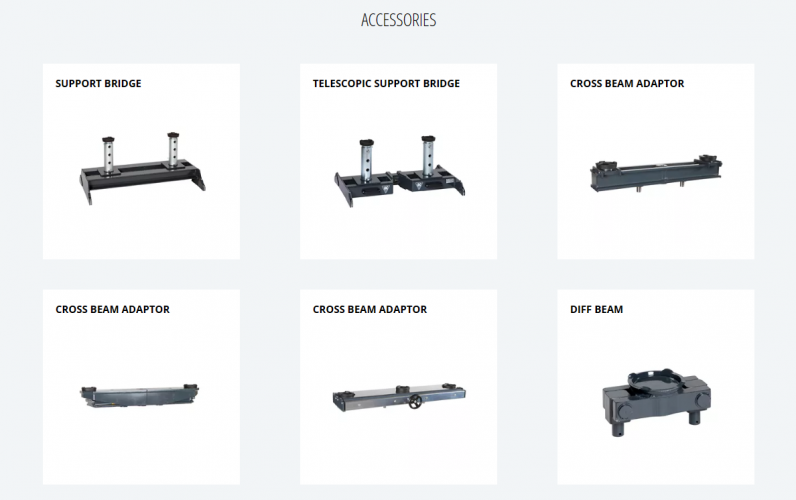

Comprehensive option range: cross beam, support bridge etc.
-
EXTENSIONS
Supplied with 2 x100 mm extensions

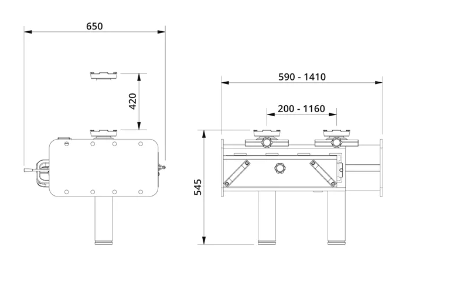

Parameters
Outer cylinder diameter | 60 mm |
Brochure | GD200-2M |
Capacity | 20000 kg |
cylinder movement | 420 mm |
Air pressure | 8-10 bar |
Maximum depth | 650 mm |
Max. height | 945 mm |
Min. height | 560 mm |
Weight | 220 kg |
