HEAVY DUTY JACK FOR THE MINING AND CONSTRUCTION INDUSTRIES
HEAVY DUTY JACK FOR THE MINING AND CONSTRUCTION INDUSTRIES
Designed for off-road maintenance on heavy duty industrial machinery
All steel, heavy duty chassis build to fit harsh environment
Large rubber tires allow easy positioning on challenging surfaces
Innovative chassis construction facilitates jack repair and even wheel changing on site
High ground clearance for clearing rail and rough terrain
Can be supplied with extensions and locking rings (not standard)
-
ERGONOMICS
Multiple position handle for easy tilt back and ergonomic moving
-
DEAD-MAN’S CONTROL
Handle with dead-man’s control for optimum safety during lifting and lowering
-
EASY HANDLING
2 lifting eyes and tilt-back handle position for easy jack handling and transport

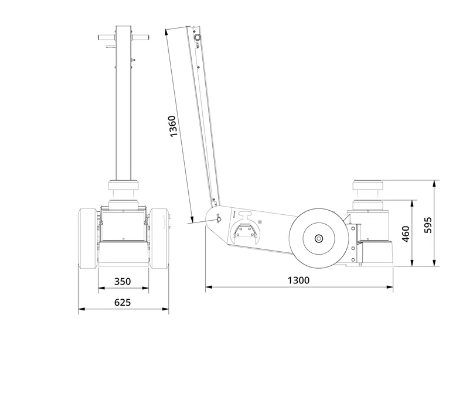

Parameters
Brochure | 100-1L |
Capacity | 100000 kg |
Air consumption | 1200 L/min |
Air pressure | 8-12 bar |
Overall length | 1300 mm |
Overall width | 625 mm |
Max. height | 595 mm |
Min. height | 460 mm |
Width between wheels | 350 mm |
Handle length | 1360 mm |
Weight | 355 kg |
