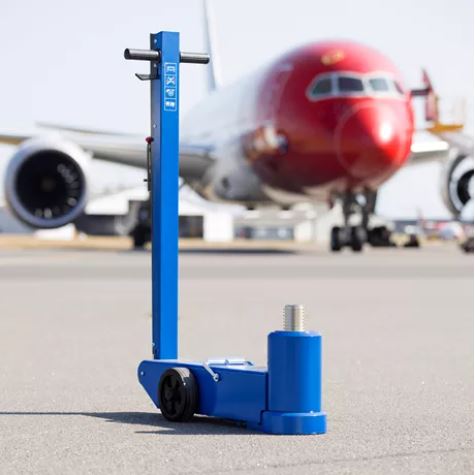

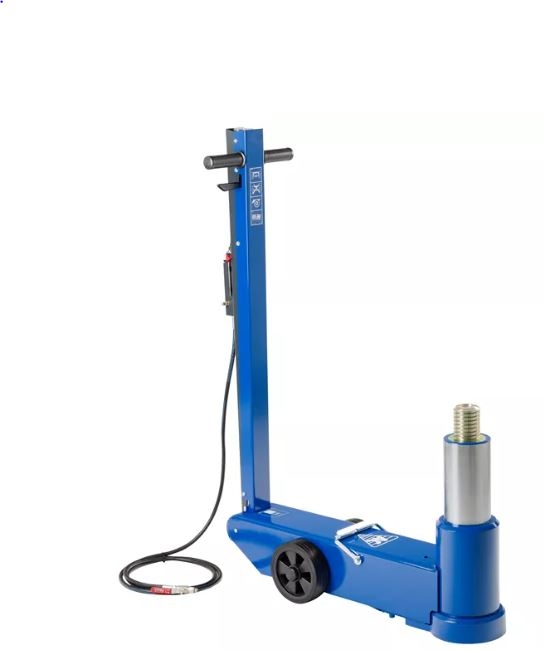

AIR HYDRAULIC AIRCRAFT JACK WITH EXTRA LONG STROKE

code: 65-1APH

out of stock

compare

_€4474⁰⁰Without VAT 3697.52 €

Price includes VAT 21%

The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart

Rapid ram retraction without load

Fitted with extension screw (80 mm) for optimum use of the stroke

Designed and manufactured according to the aircraft standards: EN 1915-1, EN 1915-2 and EN 12312-19

SAFETY

Safety features include manual lowering valve, safety overload valve and dead mans release
EASY MANOEUVRABILITY

Compact and slim design for easy operation and manoeuvrability
ERGONOMIC

Ergonomic handle with push button

Parameters

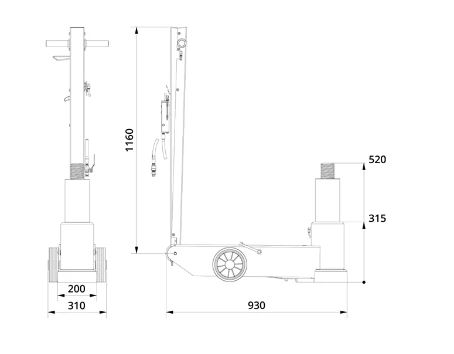

Brochure	air-hydraulic-jack-65-1aph-drawing.pdf<
Capacity	65000 kg
Air flow	350 l/min
Air pressure	8-10 bar
Overall length	930 mm
Overall width	310 mm
Max. height	520 mm
Min. height	315 mm
Width between wheels	200 mm
Handle length	1160 mm
Weight	94 kg
