JACK FOR TRUCKS, AGRICULTURAL MACHINERY & CONTRACTORS’ MACHINES
JACK FOR TRUCKS, AGRICULTURAL MACHINERY & CONTRACTORS’ MACHINES
Low minimum height of only 150 mm

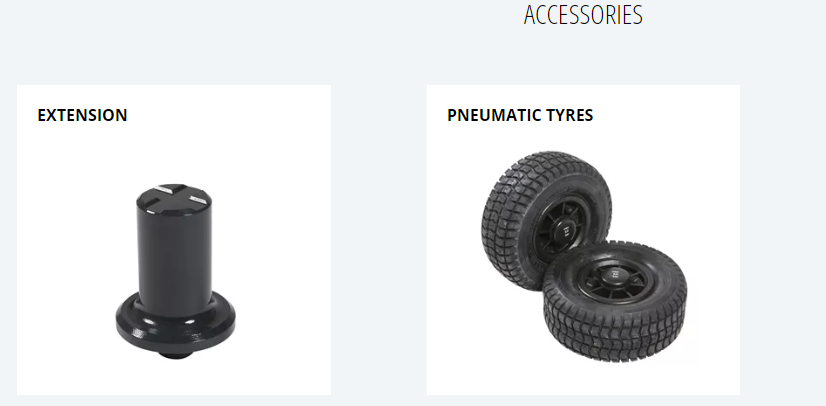

Can be fitted with pneumatic tyres for easy manoeuvring (option)
Wide and robust frame made of high-strength steel
Fitted with quick-lift pedal for easy reach of lifting point
-
PRECISE AND SAFE
Precise and safe control whilst lowering
-
DEAD MAN’S RELEASE
Manual dead man’s release for optimum safety when lowering
-
SAFETY
Built-in safety overload valve
-
ERGONOMICS
Ergonomically designed handle ensuring positive and safe operation

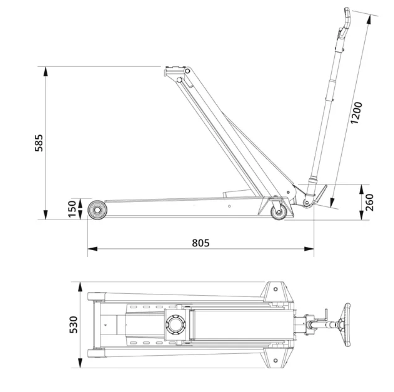

Parameters
Brochure | DK120Q |
Capacity | 12000 kg |
Total height | 260 mm |
Overall length | 805 mm |
Overall width | 530 mm |
Max. height | 585 mm |
Min. height | 150 mm |
Handle length | 1200 mm |
Weight | 118 kg |
