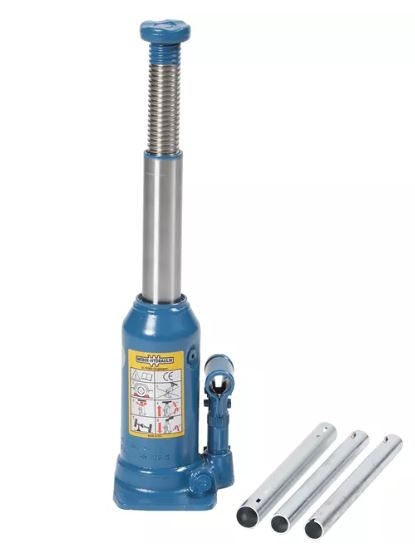

HYDRAULIC BOTTLE JACK WITH SINGLE LIFT AND EXTENSION SCREW
HYDRAULIC BOTTLE JACK WITH SINGLE LIFT AND EXTENSION SCREW
Lifting capacity 8 t
With extension screw for optimal use of the stroke
Jack can be used in horizontal position, as long as the pump piston is placed under the jack
-
INCREASED STABILITY
Model with bevelled base offer increased stability and safety as the jack follows the tilt of the vehicle when lifting
-
SAFETY
Built-in safety overload valve
-
EASY STORAGE
3 part galvanised pump handle for easy storage
Parameters
Brochure | bottle-jack-ax8-220-drawing-pdf.pdf |
Capacity | 8000 kg |
Max. height | 480 mm |
Min. height | 220 mm |
Lifting height | 150 mm |
Screw extension | 110 mm |
