Professional tire mounting machine

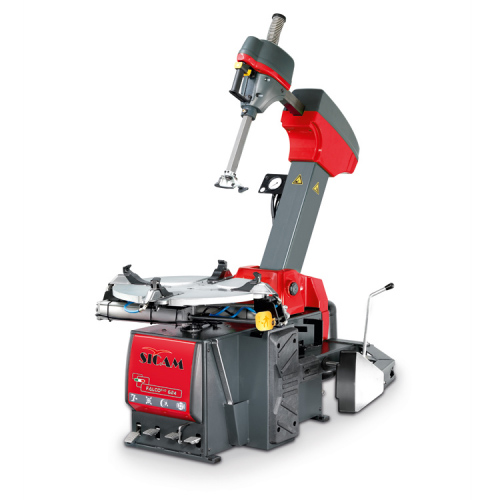

SICAM FALCO EVO 624 is a new model of tire changer with pneumatic tilting column. It is equipped with a 24-inch (with external grip) rotating table and a 4-position adjustable tire breaker.
The machine ensures maximum safety of wheels and tires during tire change, working with all types of tires, even the most difficult to mount low-profile and Run Flat (RFT) tires.
The following models of FALCO EVO 624 are available:
• With and without IT system;
• With and without TECNOROLLER NG;
• Two rotation speeds;
• With and without Ergo Control function;
Technical characteristics:
Rigid G-Frame frame;
Inverter motor drive (1 phase);
Safety, convenience and reliability;
Get4Get: 4 years warranty on the machine frame!
Pedal control of tyre inflation and impact processes;
New type of disc clamps
ERGO CONTROL: Revolutionary bead breaking system!
Ergo Control is a manual bead breaking system that always allows an ergonomic working position for the operator: less time, less effort and safety.
Ergonomic working position for the operator: less back strain compared to the traditional system, when the operator simply stands in front of the wheel.
Increased safety: the use of the main bead breaking lever (patented) prevents impacts on the operator's hand, making the bead breaking process safe during machine operation.
Reduced risk of wheel damage: control of the work process using the lever provides the operator with maximum sensitivity.
Simple and intuitive operation: the bead breaking lever can be operated with one finger.
Parameters
Brochure | SICAM FALCO EVO 624 |
Wheels size | 10-24 " |
Power supply | 230v/1ph - 230v/3ph HP V/fāze |
Air pressure | 8-10 bar |
Max. wheel diameter | 1200 mm |
Bead breaker force | 11500 N |
wheel width | 13.5 " |
Weight | 445 kg |
Noise level | > 75 dB |
