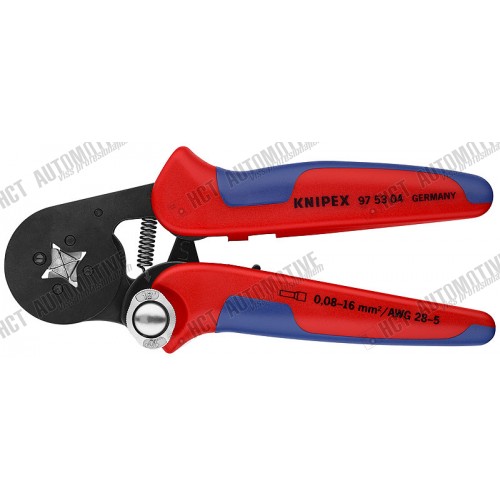

Gift ideasSelf-Adjusting Crimping Pliers for wire end sleeves
- Narrow handle width and improved ergonomics
- For crimping wire end sleeves according to DIN 46228 parts 1 + 4
- Self-adjustment to the size of wire end sleeves required
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Tools have been set precisely (calibrated) in the factory
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Handy shape and low weight provide high operation comfort
- Chrome vanadium electric steel in special quality, oil-hardened
- Model 97 53 04 :
- Square compression now additionally also for wire end sleeves up to 16 mm²
- Square compression for ideal contact surfaces in the clamp connection
- Suitable in particular for all twin wire end sleeves up to 2 x 6 mm² or 2 x AWG 8
| Pliers | burnished | |
|---|---|---|
| Handles | with multi-component grips | |
| Applications | Wire end sleeves | |
| Capacity in square millimetres | 0,08 - 10 + 16 mm² | |
| AWG | 28 - 5 | |
| Number of crimping positions | 1 | |
 |
Length | 180 mm |
 |
Net weight | 405 g |
