Mobils pacelšanas galds 4EE1190

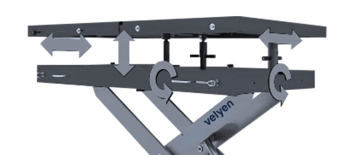

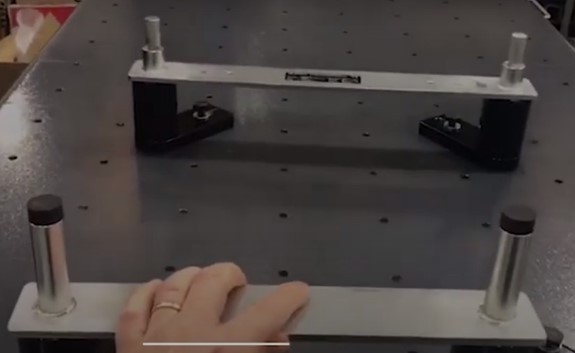

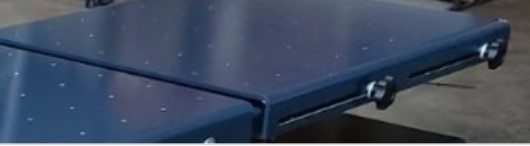

Platform with a grid hole pattern, lifting table for special tools. 10 mm. every 100 mm. (Custom manufacturing depending on OEM) 2. Longitudinal and transverse inclination + -30mm, mounting plate is separated and slidable 3. 1200 Kgs or 1400 Kgs as two options. 4. Made 100% by Spain, high quality and reliability

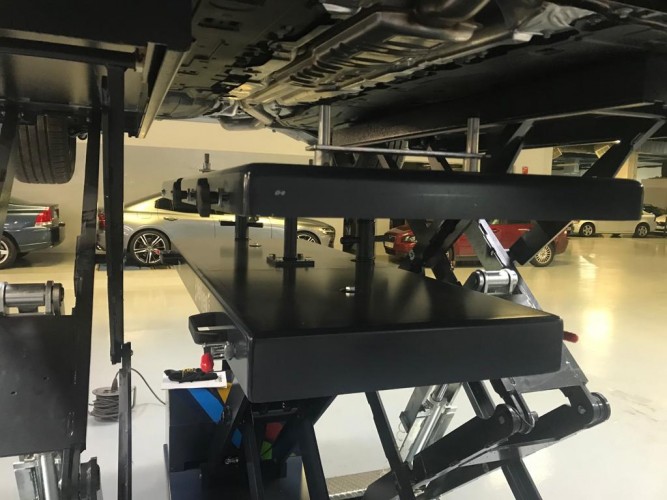

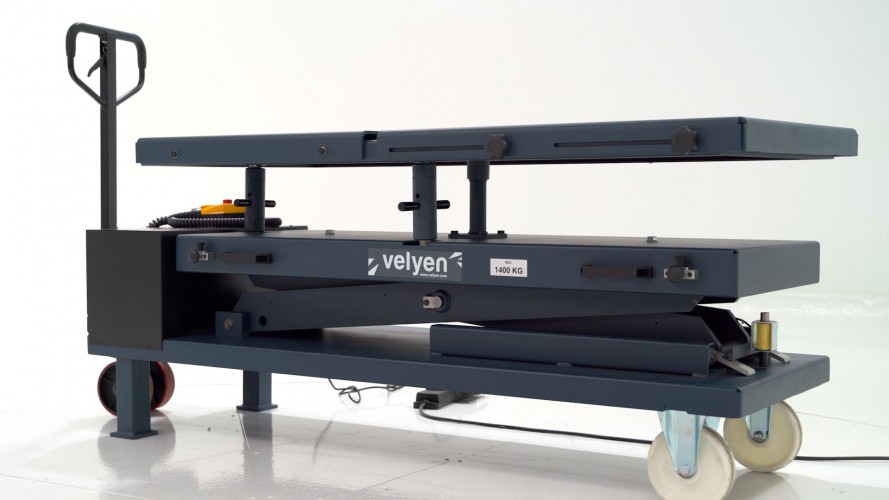

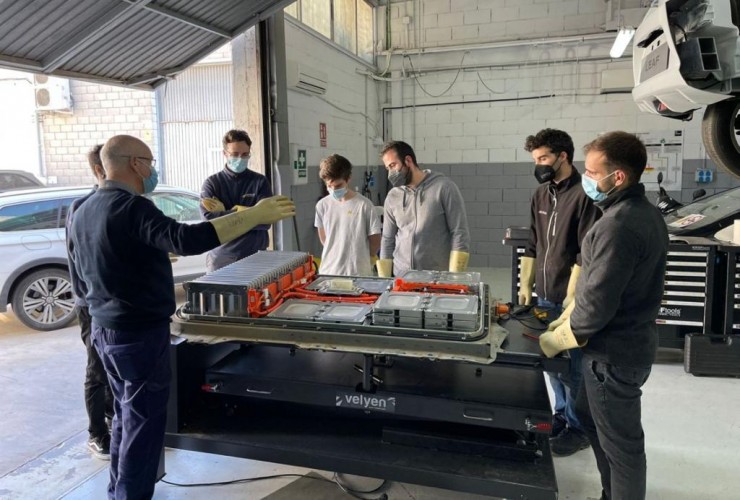

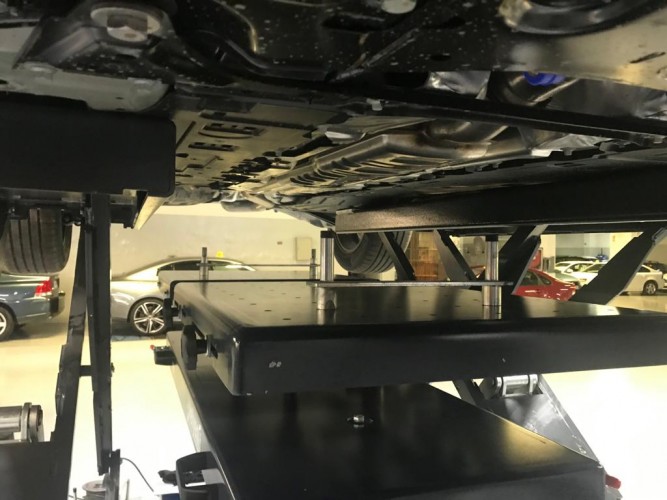

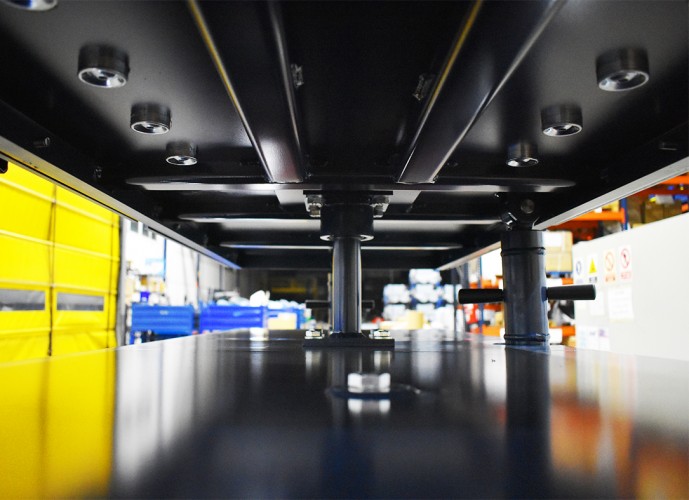

Velyen model 4EE1190 / 91 lifting table manufacturing available for VE batteries and hybrid motors, removing heavy parts 1. Platform with a grid hole pattern, lifting table for special tools. 10 mm. every 100 mm. (Custom manufacturing depending on OEM) 2. Longitudinal and transverse inclination + -30mm, mounting plate is separated and slidable 3. 1200 Kgs or 1400 Kgs as two options. 4. Made 100% by Spain, high quality and reliability 5. With mechanical lifting drawbar for greater comfort in loading/unloading 6. Extendable platform 1756-2066 mm. i.e. +310 mm extensible
Параметры
Грузоподъемность | 1200 kg |
Рабочий ход сжатия | 810 mm |
Электропитание | 220 V/fāze |
Макс. высота подъема | 1850 mm |
Мощность мотора | 1.5 kW |
Время подъема | 55 s |
высота платформы | 800mm cm |
Длинна платформы | 1756-2066 mm |
