Идеи подарковAutomātiskais hidrauliskais gaisa šķersdomkrats servisiem ar dažādām pacelšanas iespējām

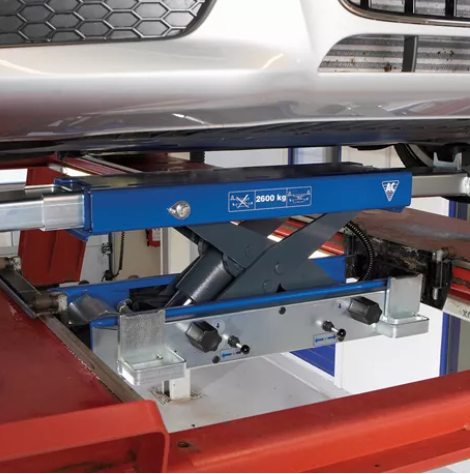

AUTOMATIC AIR HYDRAULIC JACKING BEAM FOR WORKSHOPS WITH MANY LIFTING OPERATIONS
Individual joysticks control of lifting arms to avoid time consuming working operations
Remote control activates lowering and retraction of lifting arms to closed position
Placing the remote control next to the lift control panel ensures safe operation and prevents unnecessary steps
-
FITS ALL LIFTS AND PITS
Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
-
MATCH YOUR LIFT OR PIT
The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct support arms.
-

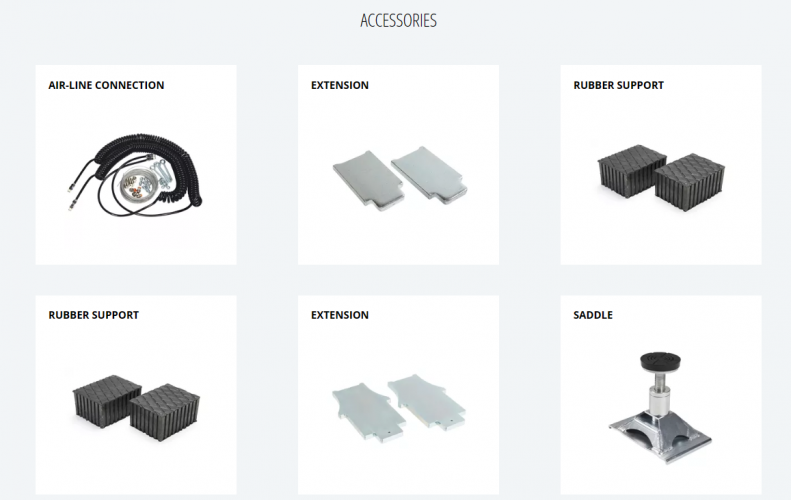

STANDARD ACCESSORIES
Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body
Параметры

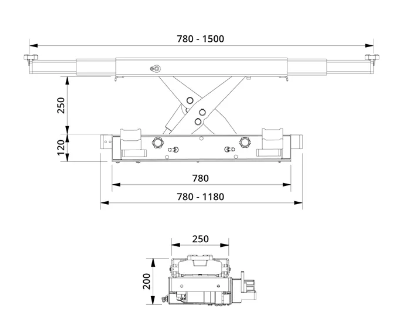

| Наружная ширина ног | 780-1180 mm |
| Верхняя ширина | 250 mm |
| Брошюра | SD26PHL-A |
| Грузоподъемность | 2600 kg |
| расход воздуха | 400-700 L/min |
| Давление воздуха | 8-10 bar |
| Мин. высота | 200 mm |
| Высота подъема осевого домкрата | 250 mm |
| Высота стойки | 120 mm |
| Bес | 120 kg |
