Saivu piekabe

Продукция » Специальная техника » Прицепы
код: CDT100S
производитель: TWS
распродано
Сообщит, когда товар будет на складе


Вопросы о товаре

Е-почта *
E-mail
Контактный телефон
Защитный код * mobile phone
Captcha8+2=
    Цена указана с НДС 21%

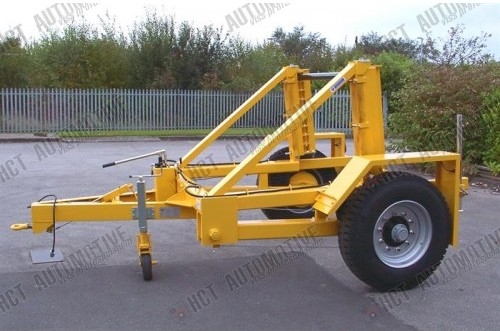

    10,000Kg Payload Site Only or Middle East/Non-EEC spec Cable Drum Trailer. This is the largest of our single axle trailers and can also be supplied in a "knock down" form as above

    Cable Drum Trailer Specification

    Gross Weight 12,500Kg
    Unladen Weight 2,500Kg
    Drawbar Load 1,000Kg Max
    Axle Weight 11,500Kg
    Drawbar Height 600mm
    Overall Length 4400mm
    Overall Width 3280mm
    Coupling Type 50mm eye
    Spindle Diameter 89mm Tubular c/w Locking Collars
    Tyres 12.00 x 20
    Brakes Overrun Non Auto Reverse c/w Park Brake (Air Brakes Optional)
    Lights Road going 12V (Rear Stop, Tail and Indicators Only)
    Mudguards Fabricated
    Prop Stands 48mm Sliding type to rear
    Jockey Wheel Heavy duty telescopic type
    Speed 15kmh
    Finish 2 Coat Commercial Standard

    Drum Lift

    25cc/Stroke Hand Pump operating 2off Single Acting Rams via Flow Divider for a balanced lift.
    Once raised, the Cable Drum is mechanically locked in the travelling position

    Cable Drum Capacity

    Cable Drum Weight 10,000Kg
    Cable Drum Max Diameter 3450mm*
    Cable Drum Min Diameter 1750mm*
    Cable Drum Width 2000mm *
