STEEL/CONCRETE WEIGHBRIDGE

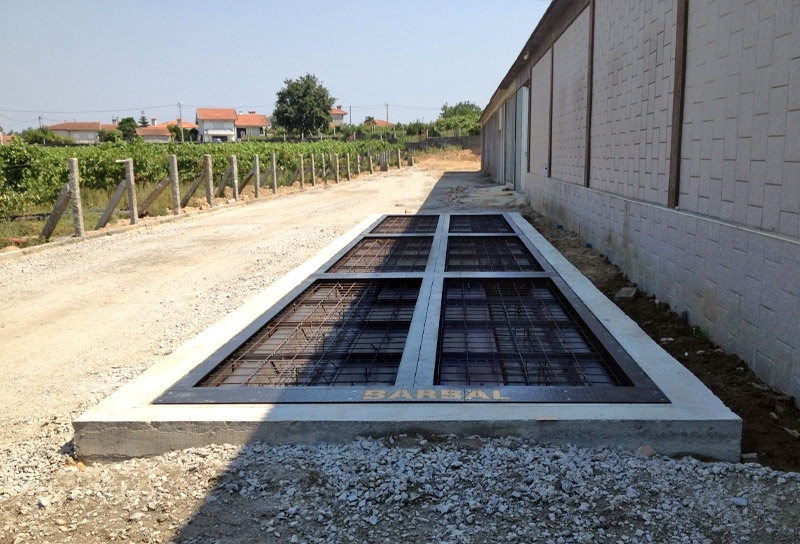

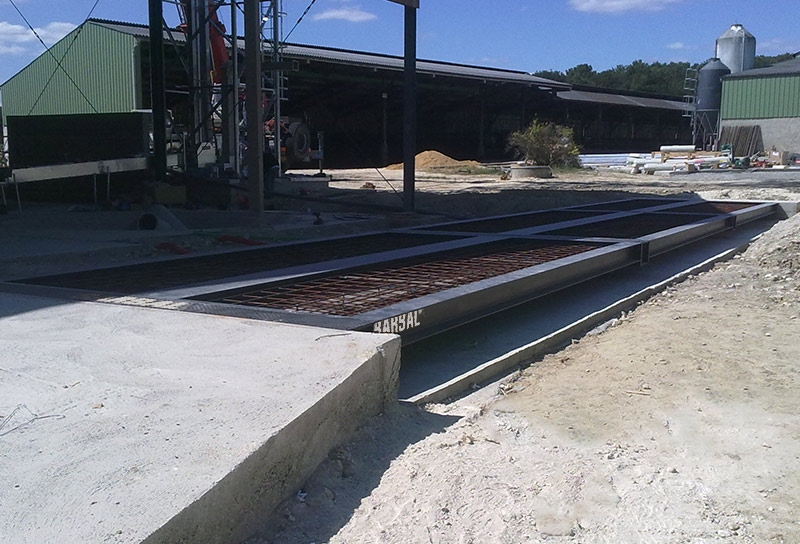

CONCRETE POURED IN INSTALLATION SITE

Above Ground or Pit Mounted

Dimensions from 9x3m up to 30x3m

Max. capacity/scale interval: from 10t/5kg up to 150t/50kg

Modular panels composed of IPE steel beams, electro welded mesh, metal formwork and concrete with a resistance class C30/37 (concrete to be poured in installation site). The client only needs to pour the concrete

Height of the rolling surface: 370mm

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60

As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable

Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)

Suitable for an intensive usage
