Грузовые весы PCML

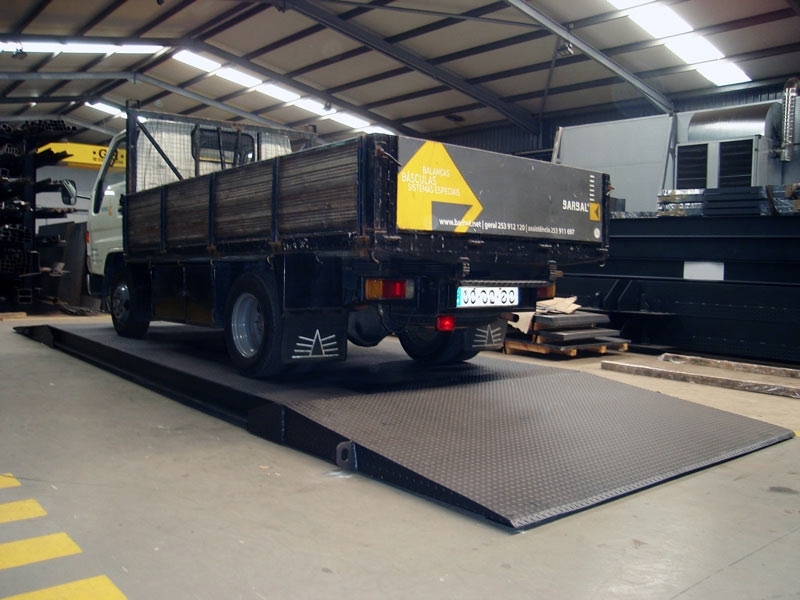

METALLIC WEIGHBRIDGE

FOR WEIGHING LIGHT VEHICLES

Above Ground or Pit Mounted

Dimensions 5,0x2,3m and 6,0x2,5m (LxW)

Max. capacity/scale interval: 10t/5kg

Monobloc deck composed of steel beams

Rolling surface made of high thickness chequer plate

Height above the ground: 200mm

Easy access to load cells and junction box through removable access hatches on the surface platform

Stainless steel compression load cells, self-centring rotation column IP68 (analogue or digital)

Adjustable feet to help levelling

Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional)

Suitable for an intensive usage
